Product Description
A great new device for your bait boat. This Toslon TF520 is an upgrade from the original TF500. Now with newer improved higher gain sonar technology which gives you much more detail of the lake bed from under your boat whilst being on the comfort on the bank side. Showing more structure detail like weed, snags, tree trunks, pretty much anything from under your boat.

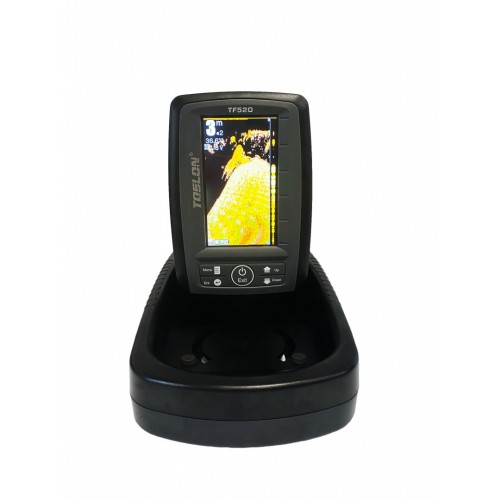

Toslon TF520 Fish Finder. Price includes internally fitted by us!
The Toslon TF520 is a colour fish finder specifically designed to be installed in a bait boat. With its 2.4Ghz frequency, it offers the user a view of the bottom topography and fish signals to a depth of 30m.
Its 65,536 colour display allows for easy reading in bright sunlight, better analysis of different substrates and more comprehensive identification of obstacles (stumps, weeds, rocks, etc.).
Range: 300m (variable depending on the environment)
Depth capability: 30m (100ft)
Wireless digital echo sounder
Radio frequency: 2.4GHz
RF chain: 20
RC power: 20dBm
Sonar frequency: 115kHz
Sonar Beam Angle: 60 degrees @-10db
Display size: 4.3" TFT LCD Sunlight Viewable
Resolution: 480 x 272 pixels - 65,536 color
Multi-language menu (including English)
Operating temperature: -10°C and +50°C
Sensor Cable Length: 50cm
Sonar unit size: 15.3cm x 11cm x 4.4cm
Portable Case size: 26.2cm x 15cm x 9.8cm
IPX6 Level Waterproof Casing Design
Water Temp. Included in Transducer
Frequency-hopping spread spectrum (FHSS)
Direct-sequence spread spectrum (DSSS)
Hardware gain adjustable
Built in 3S lithium battery charging function
Stable wireless performance even in bad condition
Monitor and Display Real-time Voltage of Bait boat Battery
Sonar Alarms: Fish / Shallow / Low Battery
Real-time display (no time lag between what the echo picks up and what is displayed on the screen)
Colour Line technology allows for easy reading of fish and bottom structure (easily identifiable bottom hardness)
Depth is indicated above each fish symbol
Sonar alarm: fish, high bottom and low battery (boat battery and echo sounder battery)
Depth sounder battery level and boat battery level display
Easy to store with a foldable display in the housing
Freshwater/saltwater compatible
If you would like this finder to be fitted to a new boat on this web site, simply add this item to your shopping cart along with the required boat and we will professionally instal this TF520 to it. Best check first it is compatible with the boat you require. Most boats it is.
